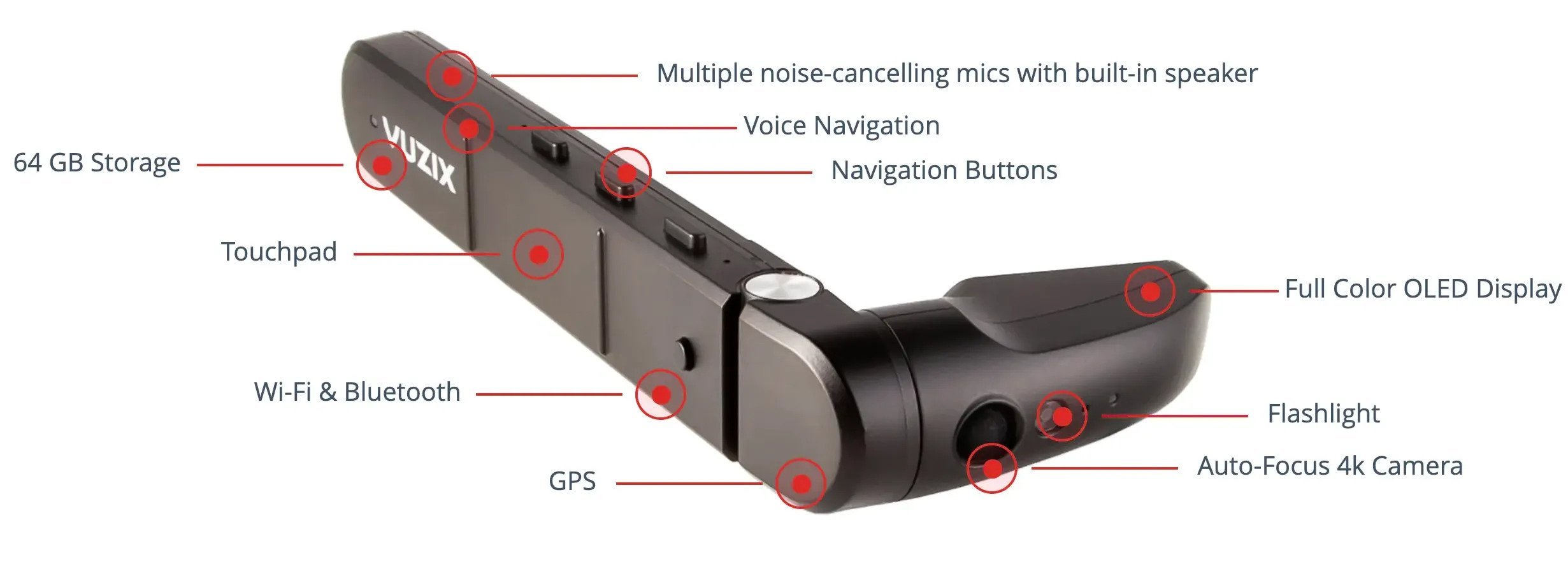

VUZIX M400 SMART GLASSES
First smart glasses with a dedicated XR1 platform
Lightweight, comfortable fit that you can wear all-day
The only option that lets you hot swap batteries on the fly with zero interruption
Increased processing power, RAM, and storage
Upgraded OLED panel display and camera with higher resolution and scanning
Immersive UI with native voice processing, motion tracking, and more
Longevity Series
The Longevity Series package includes the M400 device, a 750 mAh battery with an IP67 rating and LED indicator, lensless frames, power and charging cables, a carrying case, and a user manual, all covered under a one-year manufacturer warranty.
Extended Series
The Extended Series package includes the M400 device, an extended-life 3350 mAh power bank (not IP67 rated), lensless frames, power and charging cables, a carrying case, and a user manual, all covered under a one-year manufacturer warranty.
First smart glasses with a dedicated XR1 platform
Lightweight, comfortable fit that you can wear all-day
The only option that lets you hot swap batteries on the fly with zero interruption
Increased processing power, RAM, and storage
Upgraded OLED panel display and camera with higher resolution and scanning
Immersive UI with native voice processing, motion tracking, and more
Longevity Series
The Longevity Series package includes the M400 device, a 750 mAh battery with an IP67 rating and LED indicator, lensless frames, power and charging cables, a carrying case, and a user manual, all covered under a one-year manufacturer warranty.
Extended Series
The Extended Series package includes the M400 device, an extended-life 3350 mAh power bank (not IP67 rated), lensless frames, power and charging cables, a carrying case, and a user manual, all covered under a one-year manufacturer warranty.
First smart glasses with a dedicated XR1 platform
Lightweight, comfortable fit that you can wear all-day
The only option that lets you hot swap batteries on the fly with zero interruption
Increased processing power, RAM, and storage
Upgraded OLED panel display and camera with higher resolution and scanning
Immersive UI with native voice processing, motion tracking, and more
Longevity Series
The Longevity Series package includes the M400 device, a 750 mAh battery with an IP67 rating and LED indicator, lensless frames, power and charging cables, a carrying case, and a user manual, all covered under a one-year manufacturer warranty.
Extended Series
The Extended Series package includes the M400 device, an extended-life 3350 mAh power bank (not IP67 rated), lensless frames, power and charging cables, a carrying case, and a user manual, all covered under a one-year manufacturer warranty.
Optics
Display resolution: nHD color display
Display type: OLED
Aspect ratio: 16:9
Field of view (diagonal): 16.8°, equivalent to a 5 in. mobile device screen seen at 17 inches
Brightness: > 2000 nits
Contrast: > 10,000:1
24-bit color with true black
Supports left or right eye use
General
8 Core 2.52Ghz Qualcomm XR1
6GB LPDDR4 RAM
64GB internal flash memory
Android 9.0 OS
OS and apps OTA upgradeable
MDM available from multiple partners
Certifications
IP67 Rated (Longevity Series)
Drop safe to 2 meters
IEC60601-1-2:2014 Medical Device
ISO 14644-1 Class 2 Cleanroom rating
Mounting options
Vuzix M-Series Rail Eyeglass frames without lens (standard)
Weighs less than 3 oz.
Eyeglass frames with lens
Safety glasses
Hard hat mount
Headband mount
Peltor headphone mount
Battery
135mAh internal battery supports hot swapping of external batteries
750 mAh IP67 certified USB-C battery with 3-level LED indicator (Longevity Series) or an extended life 3,350 mAh USB-C power bank (Extended Series)
Can be powered by 3rd-party USB battery packs in place of head-worn battery
2–12 hours of operation based on external battery choice
Controls
3 control buttons
Voice control is customizable and supports multiple languages
2 axis touchpad with multi-finger support
Audio
Integrated speaker (up to 97db output)
Triple noise-canceling microphones
BT audio: HSP/A2DP
Camera
Up to 12.8-megapixel stills
Up to 4k30 video
Improved auto-focus (PDAF)
Improved optical image stabilization
LED flash/scene illumination
Barcode scanning
Connectivity
USB 3.1 Gen 2 on USB Type-C
Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
Bluetooth 5.0 BR/EDR/LE
Head Tracking
3-degree of freedom head tracking
3 axis gyro
3 axis accelerometer
3 axis mag/integrated compass
GPS
GPS / GLONASS
Environment
Operating temperature -20ºC to 45ºC/-4ºF to 113ºF
Operating humidity 0-95% RH
Storage temperature 10-45ºC
Storage humidity 0-95% RH
Supported Languages +
English
Spanish
French
German
Mandarin- Simplified Script
Mandarin- Traditional Script
Cantonese- Traditional Script
Japanese
Arabic
Bulgarian
Czech
Danish
Dutch
Farsi
Finnish
Greek
Hebrew
Hindi
Hungarian
Italian
Indonesian
Korean
Norwegian
Polish
Portuguese
Russian
Swedish
Thai
Turkish
